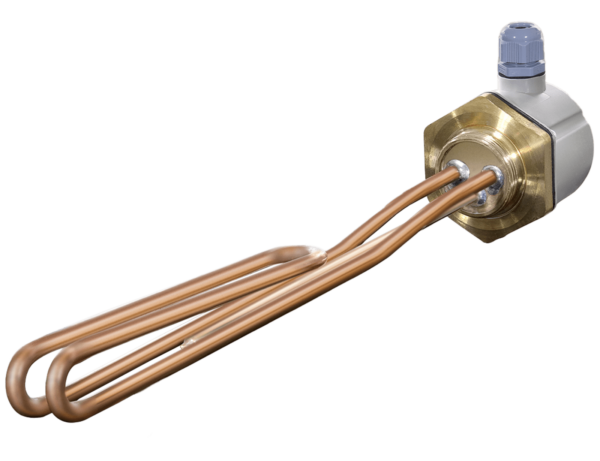

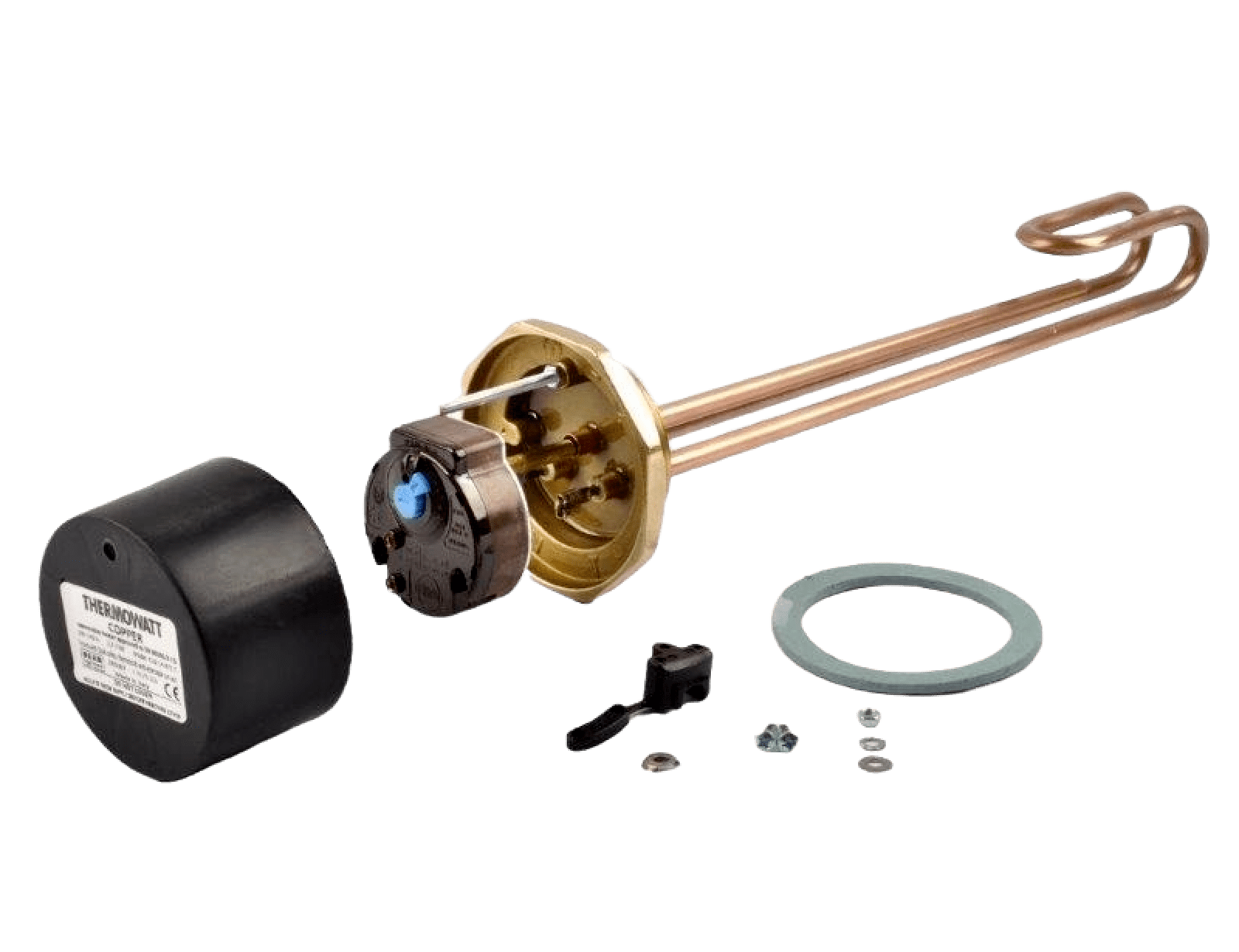

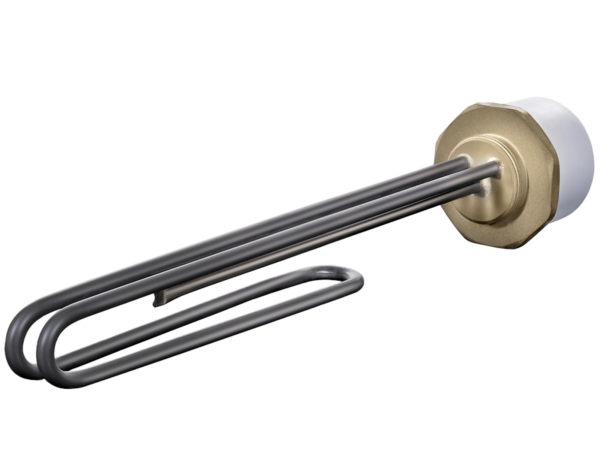

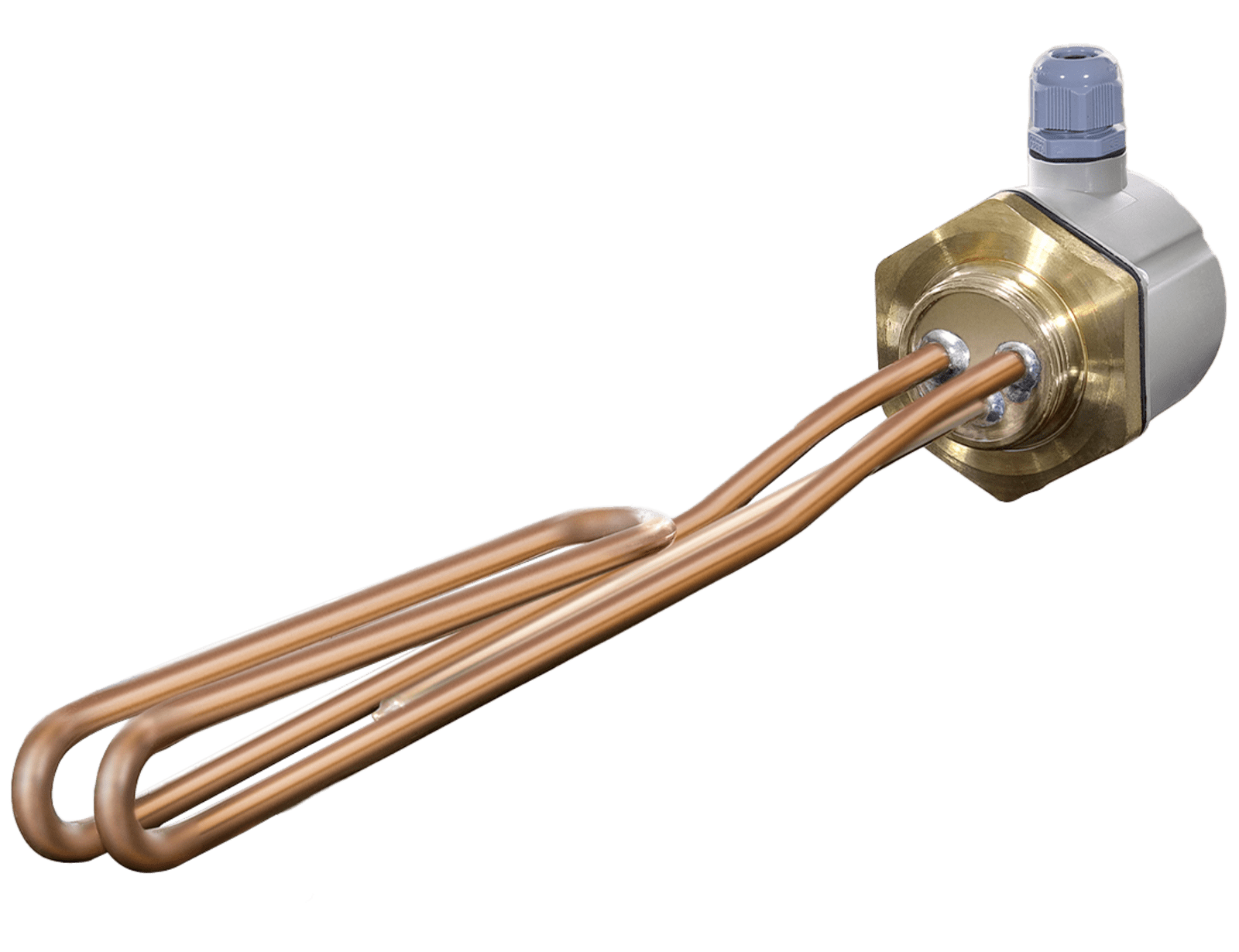

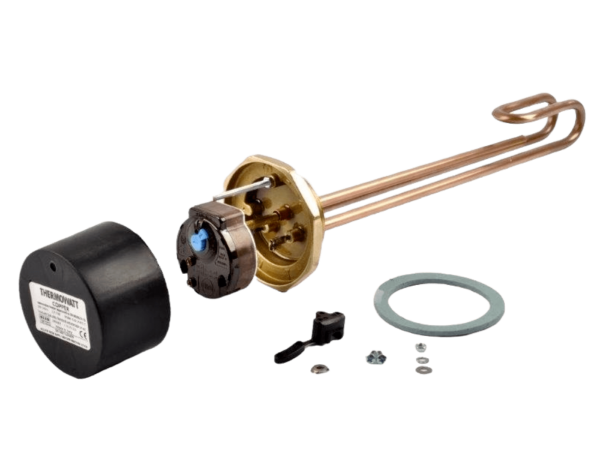

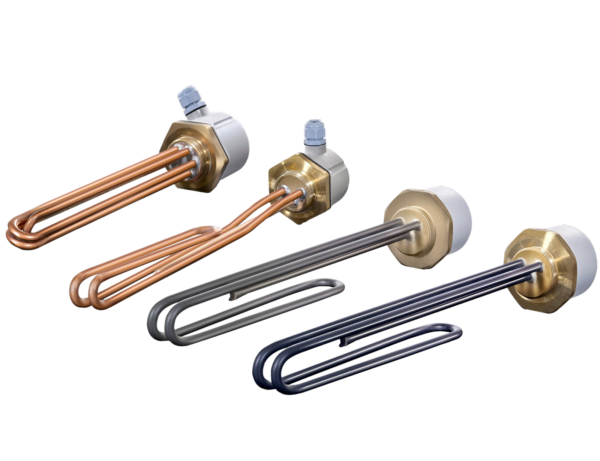

IMMERSION HEATER WITH STEM THERMOSTAT

CHARACTERISTICS

Brass flange from 1”1/2 to 2”1/4
ITek Brazing, maximum performance patented solution suitable for all the materials
Thermowatt thermostat with single-pole or bi-polar safety cut-out included
Maximum efficiency thanks to SMART algorithm (mechatronic version)
Customizable material (e.g., copper, stainless steel, high grade nickel alloy, titanium)
Standard UK power and dimension, customizable upon request
Protection rating up to IP 65, upon request

Categories: DOMESTIC, HEATING ELEMENTS, IMMERSION RODS

Description
Reviews (0)

Description

HEAD TYPE	Screw
SCREW MATERIAL	Brass
SCREW THREAD	1″3/4 or 2″1/4
ELEMENT MATERIAL	Copper / High grade nickel alloy (INCOLOY) / Titanium
ELEMENT DIAMETER	8,5 mm
ELEMENT SHAPE AND DIMENSION	According to Customer specification
RATED VOLTAGE	Up to 240 V single-phase, according to Customer specification
RATED POWER	3.000 W (UK standard), according to Customer specification
SURFACE LOAD	Up to 20 W/cm^2
THERMOSTAT AND SENSOR POCKET MATERIAL	Copper / High grade nickel alloy (INCOLOY) / Titanium
THERMOSTAT AND SENSOR POCKET DIAMETER	8 mm / 8,5 mm / 9 mm
THERMOSTAT AND SENSOR POCKET LENGHT	According to Customer specification
ELECTRICAL CONNECTION	Screw terminals, according to Customer specification
IP PROTECTION RATING	Up to IP 65, according to Customer specification
CONNECTIVITY	Wi-Fi
